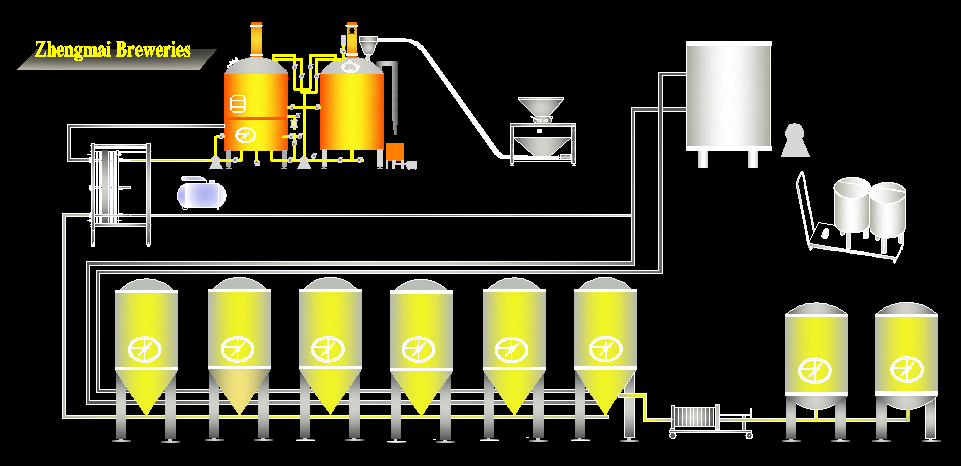

Before introduction of the mashing system , I wanner to show the whole beer brewery project process , from the Brewhouse System , Fermentation System ,Beer Serving System , Micro Beer Selling System including the auxiliary device .Through this drawing , you will briefly understand the draft beer brewery process.Zhengmai Economic turnkey beer brewery system can brew different tastes of the beer according to the different market requirements.

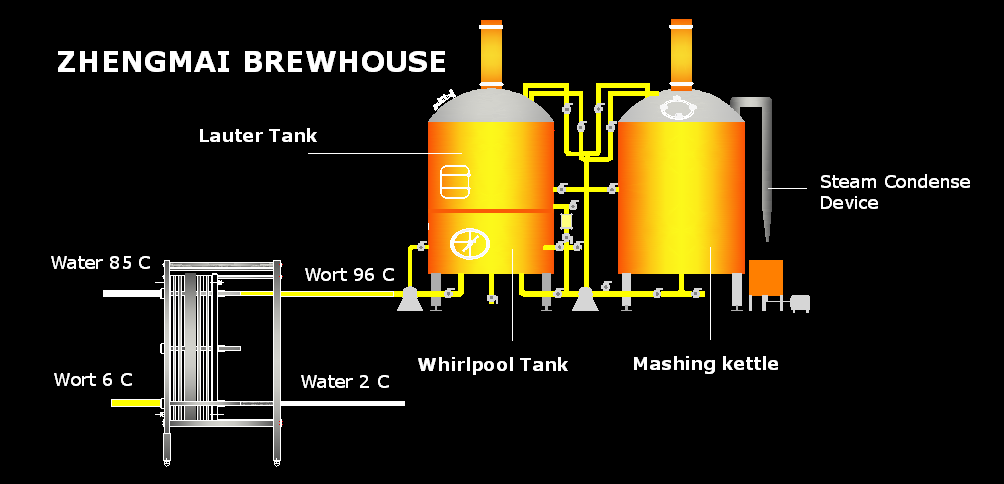

Brewhouse for two tanks enables wort production . mash mixing , Lautering , boiling and kettle function , mashing and lauter are performed in kettlewith steam heating system , lautering is gravitational , Whirlpool tank also can be the boiling tank with steam heating function , control panel isa part of the brewhouse , in the brewhouse there is mash pump , wort and hot water pumps and stainless steel one level plate wort cooler .
Brewhouse consists of two vessels creating one unit together with platform , staircase ,control panel , hot liquor tank , piping and plate wort cooler .Kettle ( the left tank ) has the following functions : mash mixing ,mashig and lautering , it is mashing and to separate the wort from grains ,the boilikng / Whirlpool tank ( the left tank ) can be as the whirlpool and boiling function . The brewhouse can brew the beer 3 time maximumly , which can save the time .
Heating of two brewhouse tanks is provided by steam through side and bottom , the hot water abstracted from the wort coller can be transfered tothe hot water tank and also can be as the lauter spraying water to save the energy . Wort cooling is done in stainless steel one level palte coolerwhich is a part of the brewhouse .
The main features for our system
1.Mashing system : it is the semi-automatic machine with seperated power controller which is fixed near to this sytem to be convenient to operate it , the heating process is automatic with 5 phase programmes inside ; this brewhouse can brew 2-3 times per day , the hot water absorbed from the wort heat exchanger can be reused to save the energy.
2. Fermentation system : Automaticly cooling system with whole stainless steel cooling pipeline which will be more durable during the operation , the cooling jacket adopts dimple welding with better cooling function , the chiller compressor with Copland brand .
3. The material adopts stainless steel Korea Pohang Brand , the polish can be 0.4UM with professional polishing machine .The welding adopts arc argon protection welding witihout any leakage with 48 hours pressure and water testing .
4. The optional elements : we can also offer Siemens / ABB motor and pump , Danfoss speed frequency device , Belimo Solenoid , Wilo ice water pump and CIP pump ,Schneider electric elements inside of the power cabinet with international repair function .
5. We can also offer installation & dubugging service , also you can make the installation according to our CAD and 3D drawing , since all the pipeline adoptsstainless steel SUS304 pipeline with ferrule connections . Our installation is quick and easy to operate .
6. We can also arrange the shippment from China to Canada with containers , all the products will be packed for safe sea shippment .
7. Our quality gaurangee for the tank is 3 years , 1 year for the electric elements , during this time we will change all the destroied elements for free , we also match the enough auxiliary fittings for you .

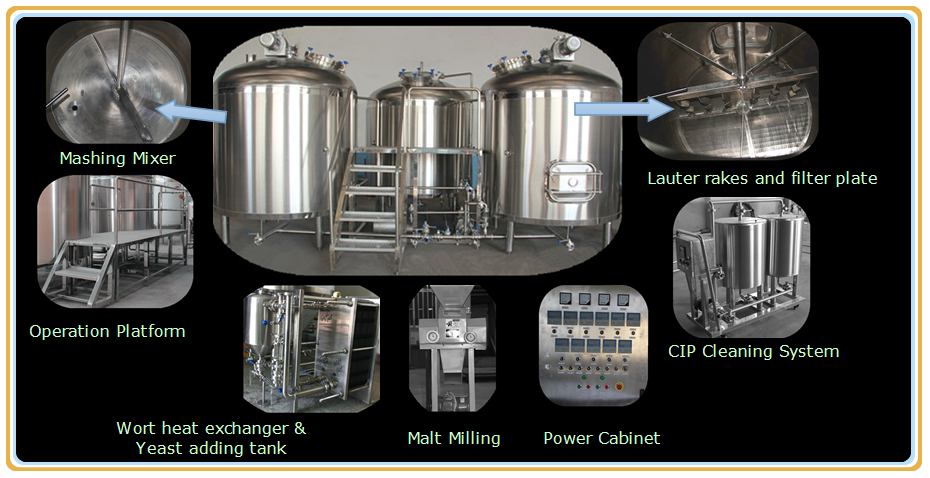

More detailed pictures for mashing system
